Specification

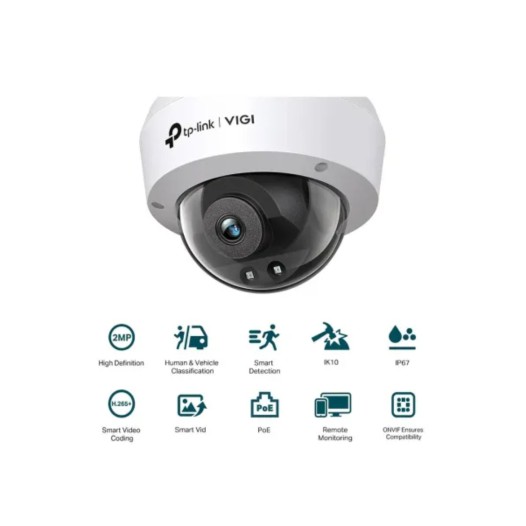

The TP-Link VIGI C240 is a 4MP Full-Color Dome IP Camera designed for high-resolution surveillance with advanced features.

Camera Specifications:

Image Sensor: 1/3” Progressive Scan CMOS

Lens Options:

2.8 mm: F1.6 aperture

4 mm: F1.6 aperture

Viewing Angle:

2.8 mm lens: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

4 mm lens: Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°

Day/Night Mechanism: IR Cut Filter

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light

Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Weatherproof Rating: IP67

Digital Noise Reduction: 3D DNR

Wide Dynamic Range: DWDR

Network Features:

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client Software: VIGI App, VIGI Security Manager, VIGI NVR, Web

General Features:

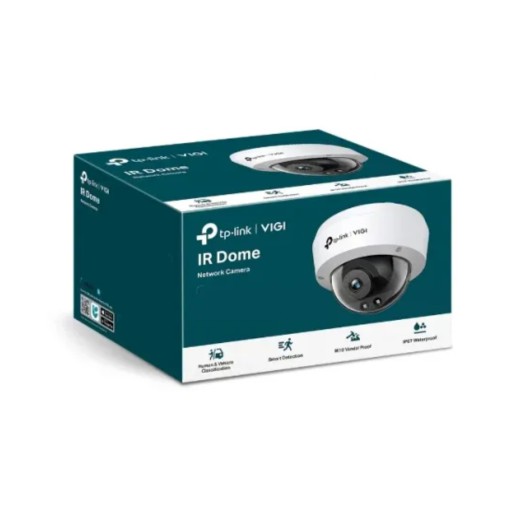

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories

Operating Temperature: -30–60°C

Certifications: CE/BSMI/VCCI/ONVIF

Dimensions: 115 × 115 × 86 mm

Material: Plastic

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)

Power Consumption: 12V DC: Max 5.4W; PoE: Class 0

Vandal Resistance: IK10

Illuminator:

IR LED: Quantity: 1; Range: 30m; Wavelength: 850nm

White LED: Quantity: 1; Range: 30m

Video/Image:

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264

Frame Rate & Resolutions:

Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 640x360, 640x480, 960x540, 1280x720

Warranty

Warranty: 1 Year

Description

The TP-Link VIGI C240 is a 4MP Dome IP Camera that sets a new standard for surveillance technology. This camera is equipped with cutting-edge specifications, including H.265+/H.265/H.264+/H.264 compression, a 1/3" Progressive Scan CMOS sensor, and a remarkable Color/0.005 Lux F1.6 sensitivity, ensuring clear and detailed imaging even in low-light conditions. With a versatile frame rate of 25fps/30fps at various resolutions (2560x1440, 2304x1296, 2048x1280, 1920x1080), this camera captures every detail with precision. The VIGI C240 offers flexible power options, supporting PoE and 12V DC, while its 4mm Fixed Lens and built-in microphone enhance its functionality. The micro-SD slot provides local storage options for convenience. This camera is designed for durability and resilience, featuring IK10 vandal resistance and IP67 weatherproofing. The Full-Color and IR Night Vision, which extends up to 30 meters and ensures optimum vision in any lighting condition, is one of its notable features. Human & Vehicle Classification are among the Smart Detection capabilities, which cover a variety of scenarios including Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Camera Tampering Detection, Abandoned Object Detection, Object Removal Detection, Area Entrance Detection, Area Exiting Detection, Vehicle Detection, and Human Detection. SmartVid technology, which includes Smart IR, DWDR, 3D DNR, and BLC, improves the camera's picture quality and versatility even more. The VIGI C240 supports ONVIF, allowing for easy interaction with a variety of surveillance systems. The VIGI App, Web interface, and VIGI Security Manager make remote monitoring simple, allowing users to view live feeds and recordings from any location. The TP-Link VIGI C240 is more than just a camera; it's a complete security system that blends cutting-edge technology with user-friendly features to give unrivaled surveillance capabilities.
